Hardware Specifications
|
|

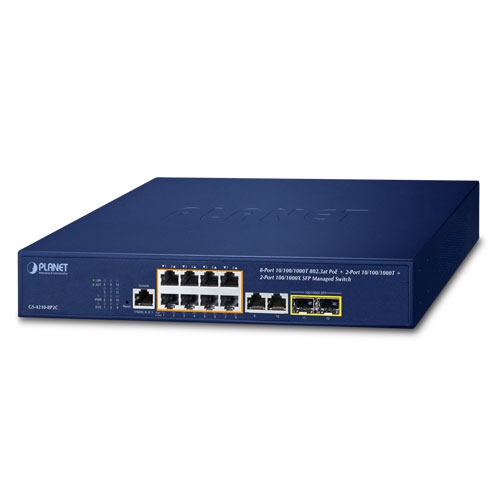

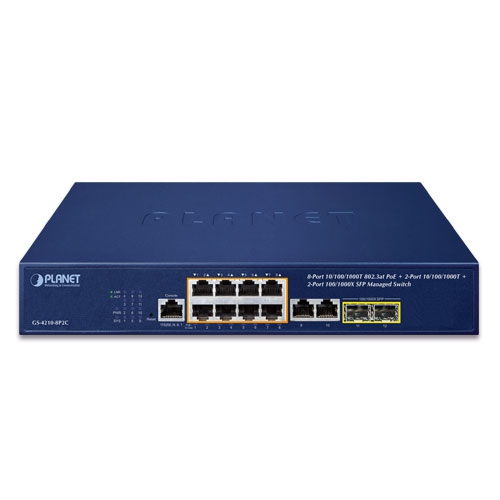

Copper Ports
|
10 x 10/100/1000BASE-T RJ45 Auto-MDI/MDI-X ports
|
|
SFP Ports
|
2 x 100/1000BASE-X SFP interfaces
|
|
Supports 100/1000Mbps dual mode and DDM
|
|
PoE Injector Port
|
8 ports with 802.3at/af PoE injector function with Port-1 to Port-8
|
|
Console
|
1 x RS-232-to-RJ45 serial port (115200, 8, N, 1)
|
|
Reset Button
|
< 5 sec: System reboot
|
|
> 5 sec: Factory default
|
|
Dimensions (W x D x H)
|
280 x 180 x 44 mm, 1U height
|
|
Weight
|
1.7kg
|
|
Enclosure
|
Metal
|
|
Power Requirements
|
AC 100~240V, 50/60Hz, 4A, auto-sensing
|
|
Power Consumption/ Dissipation
|
154 watts (max.)/525BTU
|
|
ESD Protection
|
Contact Discharge 6KV DC
|
|
Air Discharge 8KV DC
|
|

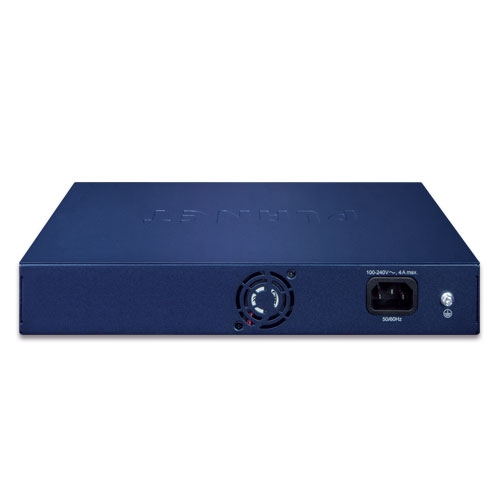

Fan
|
1 fixed speed Fan
|
|
LED
|
System:
|
|
PWR (Green)
|
|
SYS (Green)
|
|
Per 10/100/1000T RJ45Ports Port (Port 1 to Port 10):
|
|
LNK (Green), ACT (Blinks)
|
|
Per PoE Port (Port 1 to Port 8):
|
|
PoE-in-use (Amber)
|
|
Per Gigabit SFP Port (Port 11 to Port 12):
|
|
LNK (Green), ACT (Blinks)
|
|
Switching Specifications
|
|
Switch Architecture
|
Store-and-Forward
|
|
Switch Fabric
|
24Gbps/non-blocking
|
|
Switch Throughput@64Bytes
|
17.85Mpps
|
|
Address Table
|
8K entries
|
|
Shared Data Buffer
|
4.1 megabits
|
|
Flow Control
|
IEEE 802.3x pause frame for full duplex
|
|
Back pressure for half duplex
|
|
Jumbo Frame
|
10K bytes
|
|
Power over Ethernet
|
|
PoE Standard
|
IEEE 802.3af/802.3at PoE / PSE
|
|
PoE Power Supply Type
|
End-span
|
|
PoE Power Output
|
Per Port 54V DC, 32 watts (max.)
|
|
Power Pin Assignment
|
End-span: 1/2 (+), 3/6 (-)
|
|
PoE Power Budget
|
120 watts (max.)
|
|
Number of 802.3af PDs
|
7 units
|
|
Number of 802.3at PDs
|
4 units
|
|
PoE Management
|
PD Alive Check
|
|
Scheduled Power Recycling
|
|
PoE Schedule
|
|
PoE Usage Monitoring
|
|
PoE Extension
|
|
Layer 2 Functions
|
|
Port Mirroring
|
TX/RX/both
|
|
Many-to-1 monitor
|
|
Up to 4 sessions
|
|
VLAN
|
IEEE 802.1Q tagged-based VLAN
|
|
IEEE 802.1ad Q-in-Q tunneling
|
|
Voice VLAN
|
|
Protocol VLAN
|
|
Private VLAN (Protected port)
|
|
GVRP
|
|
Up to 256 VLAN groups, out of 4094 VLAN IDs
|
|
Link Aggregation
|
IEEE 802.3ad LACP/Static Trunk
|
|
Supports 2 trunk groups with 4 ports per trunk
|
|
Spanning Tree Protocol
|
STP, IEEE 802.1D Spanning Tree Protocol
|
|
RSTP, IEEE 802.1w Rapid Spanning Tree Protocol
|
|
MSTP, IEEE 802.1s Multiple Spanning Tree Protocol
|
|
STP BPDU Guard, BPDU Filtering and BPDU Forwarding
|
|
IGMP Snooping
|
IPv4 IGMP (v2/v3) Snooping
|
|
IPv4 IGMP Querier
|
|
Up to 256 multicast groups
|
|
MLD Snooping
|
IPv6 MLD (v1/v2) Snooping
|
|
Up to 256 multicast groups
|
|
QoS
|
8 mapping ID to 8 level priority queues
|
|
Port number
|
|
802.1p priority
|
|
802.1Q VLAN tag
|
|
DSCP field in IP packet
|
|
Traffic classification based, strict priority and WRR
|
|
Ring
|
Supports ERPS, and complies with ITU-T G.8032
|
|
Security Functions
|
|
Access Control List
|
IPv4/IPv6 IP-based ACL
|
|
MAC-based ACL
|
|
Security
|
IP-MAC port binding
|
|
MAC filter
|
|
Static MAC address
|
|
DHCP Snooping and DHCP Option82
|
|
DoS attack prevention
|
|
ARP inspection
|
|
IP source guard
|
|
AAA
|
Built-in RADIUS client to co-operate with RADIUS server
|
|
Network Access Control
|
IEEE 802.1X – Port-based authentication
|
|
RADIUS/TACACS+ user access authentication
|
|
Management Functions
|
|
Basic Management Interfaces
|
RS232 Console
|
|
Web browser
|
|
Telnet
|
|
SNMP v1, v2c
|
|
Secure Management Interfaces
|
SSHv2, TLS v1.2, SNMPv3
|
|
System Management
|
Firmware upgrade by HTTP/TFTP protocol through Ethernet network
|
|
LLDP protocol
|
|
SNTP
|
|
PLANET Smart Discovery Utility
|
|
PLANET NMS System
|
|
PLANET CloudViewer app
|
|
Event Management
|
Remote/Local Syslog
|
|
System log
|
|
SNMP MIBs
|
RFC 1213 MIB-II
|
|
RFC 1215 Generic Traps
|
|
RFC 1493 Bridge MIB
|
|
RFC 2674 Bridge MIB Extensions
|
|
RFC 2737 Entity MIB (Version 2)
|
|
RFC 2819 RMON (1, 2, 3, 9)
|
|
RFC 2863 Interface Group MIB
|
|
RFC 3635 Ethernet-like MIB
|
|
RFC 3621 Power Ethernet MIB
|
|
Standards Conformance
|
|
Regulatory Compliance
|
FCC Part 15 Class A, CE
|
|
Standards Compliance
|
IEEE 802.3 10BASE-T
|
|
IEEE 802.3u 100BASE-TX/100BASE-FX
|
|
IEEE 802.3z Gigabit SX/LX
|
|
IEEE 802.3ab Gigabit 1000T
|
|
IEEE 802.3x flow control and back pressure
|
|
IEEE 802.3ad port trunk with LACP
|
|
IEEE 802.1D Spanning Tree protocol
|
|
IEEE 802.1w Rapid Spanning Tree protocol
|
|
IEEE 802.1s Multiple Spanning Tree protocol
|
|
IEEE 802.1p Class of Service
|
|
IEEE 802.1Q VLAN tagging
|
|
IEEE 802.1x Port Authentication Network Control
|
|
IEEE 802.1ab LLDP
|
|
IEEE 802.3af Power over Ethernet
|
|
IEEE 802.3at Power over Ethernet Plus
|
|
IEEE 802.3az Energy Efficient Ethernet
|
|
RFC 768 UDP
|
|
RFC 793 TFTP
|
|
RFC 791 IP
|
|
RFC 792 ICMP
|
|
RFC 2068 HTTP
|
|
RFC 1112 IGMP version 1
|
|
RFC 2236 IGMP version 2
|
|
RFC 3376 IGMP version 3
|
|
RFC 2710 MLD version 1
|
|
RFC 3810 MLD version 2
|
|
ITU G.8032 ERPS Ring
|
|
Environment
|
|
Operating
|
Temperature: 0 ~ 50 degrees C
|
|
Relative Humidity: 5 ~ 95% (non-condensing)
|
|
Storage
|
Temperature: -20 ~ 70 degrees C
|
|
Relative Humidity: 5 ~ 95% (non-condensing)
|
