Артикул: MGS-6311-24UPL6X

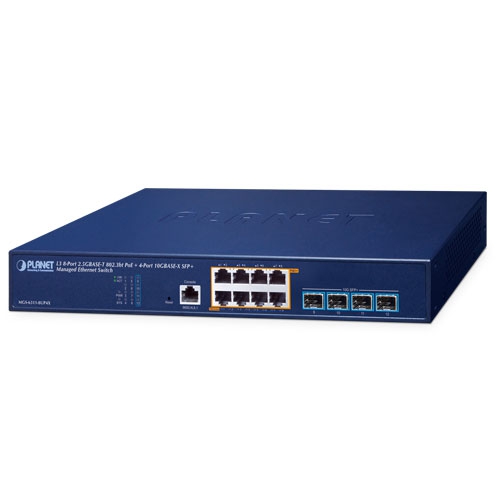

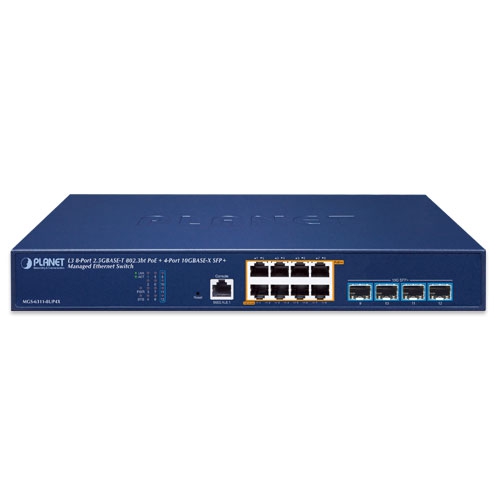

Управляемый Ethernet коммутатор L3 PLANET MGS-6311-8UP4X обеспечивает 2.5GBASE-T подключение, поддержку PoE++ до 95 Вт на порт и 10G SFP+ uplink. Устройство разработано для сетей высокой пропускной способности, Wi‑Fi 7, AI‑камер, умных зданий и корпоративных инфраструктур.
Ключевые особенности
- 8 × 2.5GBASE-T PoE++ (до 95 Вт на порт)
- 4 × 10GBASE-X SFP+ uplink
- Общий PoE-бюджет: 240 Вт
- Поддержка Wi‑Fi 7, AI-камер, PoE-освещения
- L3-маршрутизация: OSPFv2, RIPv2, VRRP
- Полная поддержка IPv4/IPv6
- PD Alive Check, PoE Scheduling
- Металлический корпус, монтаж в стойку
Основные технические параметры
- Порты доступа: 8 × 2.5GBASE-T PoE++
- Uplink: 4 × 10G SFP+
- PoE: IEEE 802.3bt, до 95 Вт на порт
- PoE-бюджет: 240 Вт
- Маршрутизация: OSPFv2, RIPv2, VRRP, статическая IPv4/IPv6
- Управление: Web, CLI, SNMP, SSH, IPv6 management
- Безопасность: ACL, DHCP Snooping, IP Source Guard, 802.1X
- Монтаж: 19" стойка
Применение
- Wi‑Fi 7 точки доступа
- AI‑камеры и видеонаблюдение высокой плотности
- Умные здания и PoE‑освещение
- Edge‑AI и вычислительные узлы
- Корпоративные и кампусные сети
- Операторские и ISP‑инфраструктуры
Функции управления и безопасности
- L3-маршрутизация: OSPFv2, RIPv2, VRRP
- Полный набор L2/L2+ функций: VLAN, QoS, IGMP Snooping
- IPv6 management
- PD Alive Check, PoE Scheduling
- ACL, 802.1X, DHCP Snooping, DoS-защита
- SNMP v1/v2c/v3, SSH, HTTPS
Полная спецификация
| Hardware Specifications | |
| Copper Ports | 8 10/100/1000/2500BASE-T RJ45 copper ports (ports 1 to 8) |
| PoE Injector Port | 8 ports with 802.3at/bt PoE++ injector function (ports 1 to 8) |
| 10G SFP+ Ports |
4 10GBASE-SR/LR SFP+ interface (ports 9 to 12) Backward compatible with 1G/2.5GBASE-SX/LX/BX SFP transceiver |
| Console Port | 1 x RJ45-to-RS232 serial port (9600, 8, N, 1) |
| CPU | MIPS 800MHz |
| RAM | 4Gbytes |
| Flash Memory | 32Mbytes |
| ESD Protection | Contact ±6KV , Air ±8KV |
| Surge Protection | Differential mode ±2KV , Common mode ±4KV |
| Dimensions (W x D x H) | 330 x 230 x 43.6 mm, 1U height |
| Weight | 2510g |
| Power Consumption |
10.4 watts / 35.46BTU (System) 280 watts/ 954.8 BTU (System+PoE) |
| Power Requirements- AC | AC 100~240V, 50/60Hz |

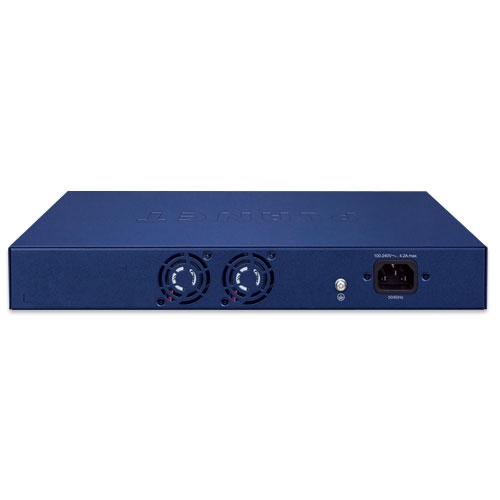

| Fan | 2 Smart FAN |
| LED |
System: PWR (Green), SYS (Green) Ports: Per 2.5GBASE-T RJ45 Ports: 10/100/1000/2500Mbps LNK/ACT (Green) 802.3bt/at/af PoE-in-Use (Amber) Per 10GBASE-X SFP Ports: 1G/2.5G/10G LNK/ACT (Green) |
| Switching Specifications | |
| Switch Architecture | Store-and-forward |
| Switch Fabric | 120Gbps/non-blocking |
| Switch Throughput | 89.28Mpps |
| Address Table | 16K MAC address table with auto learning function |
| ARP Table | 8K |
| Routing Table | 6K |
| IP Interface | 1024 |
| ACL Table | 4K |
| Shared Data Buffer | 12Mbit |
| Multicast Table | 1K |
| Jumbo Frame | 12KBytes |
| Flow Control |
Back pressure for half duplex IEEE 802.3x pause frame for full duplex |
| Power over Ethernet Specifications | |
| PoE Standard | IEEE 802.3bt PoE++ PSE |
| PoE Power Supply Type | End-span/Mid-span/802.3bt |
| PoE Power Output | 95W(max.) |
| Power Pin Assignment | 1/2(-)3/6(+), 4/5(+)7/8(-) |
| PoE Power Budget | 240 watts (max.) |
| IPv4 Layer 3 Functions | |
| IP Routing Protocol |
VRRP v1, v2, v3 Static route RIPv1/v2 OSPFv2 BGP4 Hardware-based Layer 3 routing |
| Layer 3 Protocol |
ARP ARP Proxy IGMP Proxy |
| IPv6 Layer 3 Functions | |
| IP Routing Protocol |
IPv6 Static Route RIPng OSPFv3 BGP6 (BGP4+) PIM6 IPv6 RA (Router Advertisement) IPv6 LPM Routing Hardware-based Layer 3 routing SNMP over IPv6 Support IPv6 IPSec Support IPv6 ACL |
| Other |
ICMPv6,ND,DNSv6 DNS over IPv6 Support |
| Layer 2 Functions | |
| Port Configuration |
EEE Green energy savings disable/enable Port disable/enable Flow control disable/enable Bandwidth control on each port Port loopback detect |
| Port Status | Display each port’s speed duplex mode, link status, flow control status and auto negotiation status |
| VLAN |
802.1Q tagged VLAN, up to 4K VLAN groups 802.1ad Q-in-Q (VLAN stacking) GVRP for VLAN management Private VLAN Edge (PVE) supported Protocol-based VLAN MAC-based VLAN IP subnet VLAN |
| Spanning Tree Protocol |
STP, IEEE 802.1D (Classic Spanning Tree Protocol) RSTP, IEEE 802.1w (Rapid Spanning Tree Protocol) MSTP, IEEE 802.1s (Multiple Spanning Tree Protocol, spanning tree by VLAN) Supports BPDU and root guard, BPDU Filtering and BPDU Forwarding |
| Bandwidth Control | TX/RX/Both |
| Link Aggregation |
IEEE 802.3ad LACP/static trunk Supports 64 groups with 8 ports per trunk group |
| Ring |
Supports ERPS, and complies with ITU-T G.8032 Recovery time < 15ms @ 3 nodes Recovery time <50ms @ 16 nodes Supports major ring and sub-ring |
| QoS |
8 priority queues on all switch ports Supports strict priority and Weighted Round Robin (WRR) CoS policies Traffic classification: IEEE 802.1p CoS/ToS IPv4/IPv6 DSCP Port-based WRR |
| Multicast |
IPv4 IGMP v1/v2/v3 snooping IPv4 Querier mode support IPv6 MLD v1/v2 snooping Multicast VLAN Register (MVR) Up to 1024 |
| Security Functions | |
| Access Control List |
Supports Standard and Expanded ACL IP-based ACL/MAC-based ACL Time-based ACL Up to 4K entries |
| Security |
Port isolation Supports IP + MAC + port binding Identification and filtering of L2/L3/L4 based ACL Defend against DOS or TCP attacks Suppression of broadcast, multicast and unknown unicast packet DHCP Snooping, DHCP Option 82/43/60/61/67 Command line authority control based on user levels |
| AAA | TACACS+ and IPv4/IPv6 over RADIUS |
| Authentication |
IEEE 802.1x port-based network access control MAC-based authentication |
| Switch Management Functions | |
| System Configuration | Console, Telnet, Web browser, SNMP v1, v2c |
| Secure Management Interfaces | SSHv2, TLSv1.2, SNMPv3 |
| Management |
IPv4 and IPv6 dual stack management SNMP over IPv6 Support User IP security inspection for IPv4/IPv6 SNMP SNMP v1, v2c and v3 SNMP MIB and TRAP SNMP RMON 1, 2, 3, 9 four groups HTTP over IPv6 Support IPv4/IPv6 FTP/TFTP IPv4/IPv6 SNTP/NTP Supports ping, trace route function for IPv4 and IPv6 RADIUS authentication for IPv4/IPv6 Telnet user name and password IPv4/IPv6 SSH IPv4/IPv6 Telnet IPv6 Radius+ Support The right configuration for users to adopt RADIUS server’s shell management CLI, console, Telnet Security IP safety net management function: avoid unlawful landing at nonrestrictive area Syslog server for IPv4 and IPv6 IPv6 TACACS+ support PLANET Smart Discovery Utility PLANET NMS controller and CloudNMS supported |
| ONVIF |
ONVIF device discovery ONVIF device quick link |
| SNMP MIBs |
RFC 1213 MIB-II RFC 1215 Internet Engineering Task Force RFC 1271 RMON RFC 1354 IP-Forwarding MIB RFC 1493 Bridge MIB RFC 1643 Ether-like MIB RFC 1907 SNMP v2 RFC 2011 IP/ICMP MIB RFC 2012 TCP MIB RFC 2013 UDP MIB RFC 2096 IP forward MIB RFC 2233 if MIB RFC 2452 TCP6 MIB RFC 2454 UDP6 MIB RFC 2465 IPv6 MIB RFC 2466 ICMP6 MIB RFC 2573 SNMP v3 notify RFC 2574 SNMP v3 vacm RFC 2674 Bridge MIB Extensions (IEEE 802.1Q MIB) RFC 2674 Bridge MIB Extensions (IEEE 802.1P MIB) RFC 3635 Ethernet-like MIB RFC 2863 Interface Group MIB RFC 2819 RMON (1, 2, 3,9) RFC 1493 Bridge MIB Power over Ethernet MIB |
| Standard Conformance | |
| Regulatory Compliance | FCC Part 15 Class A, CE |
| Standards Compliance |
IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3z Gigabit 1000BASE-SX/LX IEEE 802.3ab Gigabit 1000BASE-T IEEE 802.3bz Gigabit 2.5G, 5GBASE-T IEEE 802.3an Gigabit 10GBASE-T IEEE 802.3ae 10Gb/s Ethernet IEEE 802.3x flow control and back pressure IEEE 802.3ad port trunk with LACP IEEE 802.1ag CFM IEEE 802.1D Spanning Tree Protocol IEEE 802.1w Rapid Spanning Tree Protocol IEEE 802.1s Multiple Spanning Tree Protocol IEEE 802.1p Class of Service IEEE 802.1Q VLAN tagging IEEE 802.1X port authentication network control IEEE 802.1ab LLDP IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet PLUS IEEE 802.3bt Power over Ethernet PLUS PLUS RFC 768 UDP RFC 783 TFTP RFC 793 TCP RFC 791 IP RFC 792 ICMP RFC 2068 HTTP RFC 1112 IGMP v1 RFC 2236 IGMP v2 RFC 3376 IGMP v3 RFC 2710 MLD v1 RFC 3810 MLD v2 RFC 2328 OSPF v2 RFC 1058 RIP v1 RFC 2453 RIP v2 ITU-T G.8032 ERPS Ring |
| Environment | |
| Operating |
Temperature: 0 ~ 50 degrees C Relative Humidity: 5 ~ 90% (non-condensing) |
| Storage |
Temperature: -10 ~ 70 degrees C Relative Humidity: 5 ~ 90% (non-condensing) |
