| Copper Ports | 8 10/100BASE-TX RJ45 auto-MDI/MDI-X ports |
| Switch Architecture | Store-and-Forward |
| Switch Fabric | 1.6Gbps (non-blocking) |
| Throughput (packet per second) | 1.19Mpps@ 64 bytes |
| Address Table | 1K entries, automatic source address learning and aging |
| Shared Data Buffer | 448K bits |
| Flow Control |
IEEE 802.3x pause frame for full-duplex Back pressure for half-duplex |
| ESD Protection | 6KV DC |
| Enclosure | IP30 metal case |
| Installation | DIN rail kit and wall-mount kit |
| Connector |

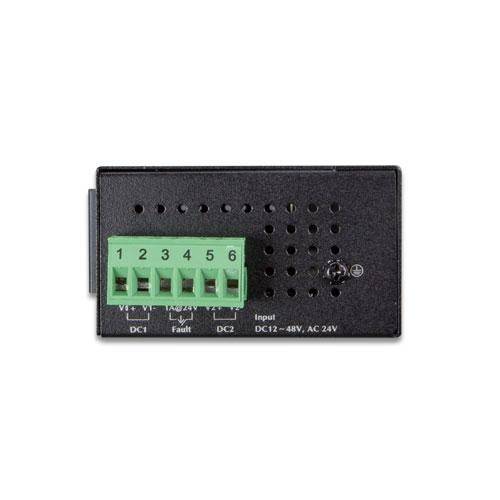

Removable 6-pin terminal block for power input Pin 1/2 for Power 1, Pin 3/4 for fault alarm, Pin 5/6 for Power 2 |
| Alarm | One relay output for power failure. Alarm relay current carry ability: 1A @ 24V DC |
| LED Indicator |
System: Power 1 (Green) Power 2 (Green) Fault Alarm ( Red ) Per 10/100TX RJ45 Ports: 10/100 LNK/ACT (Green) |
| Dimensions (W x D x H) | 70 x 115 x 41 mm |
| Weight | 300g |
| Power Requirements | Dual 12~48V DC, 24V AC |
| Power Consumption |
Max. 1.1 watts/3.77BTU (Power on without any connection) Max. 2.5 watts/8.57BTU (Ethernet full loading) |
| Standards Conformance | |
|---|---|
| Regulatory Compliance | FCC Part 15 Class A, CE |
| Stability Testing |
IEC60068-2-32 (free fall) IEC60068-2-27 (shock) IEC60068-2-6 (vibration) |
| Standards Compliance |
IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX/100BASE-FX IEEE 802.3x flow control and back pressure IEEE 802.1p Class of Service IEEE 802.1X Port Authentication Network Control IEEE 802.3az Energy Efficient Ethernet (EEE) |
| Environment | |
| Operating Temperature | -40 ~ 75 degrees C |
| Storage Temperature | -40 ~ 85 degrees C |
| Humidity | 5 ~ 95% (non-condensing) |

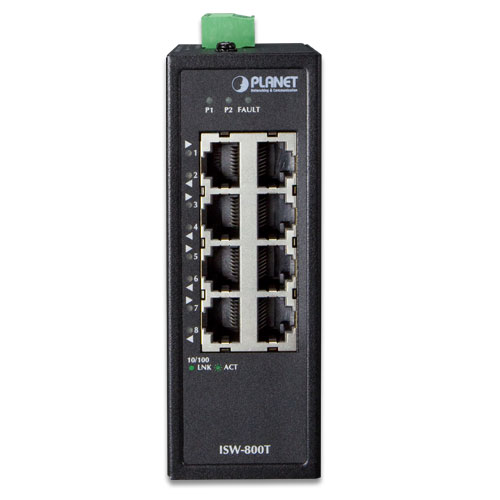

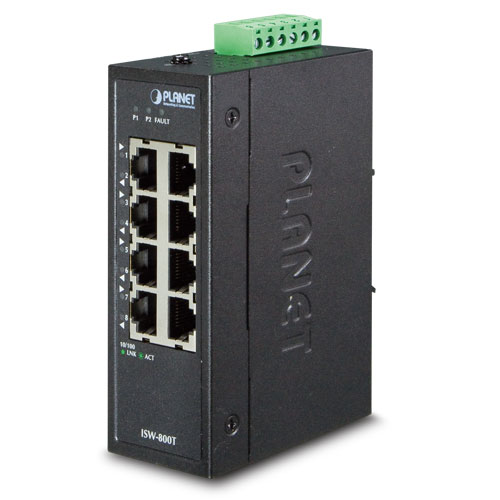

Промышленный 8-портовый компактный Ethernet-коммутатор 10 / 100TX Planet ISW-800T
Артикул: ISW-800T
PLANET ISW-800T - промышленный 8 портовый 10/100TX коммутатор, в прочном и компактном IP30 металлическом корпусе, двойной системой питания (12~48V DC или 24V AC) с возможностью резервирования и рабочим диапазоном температур от -40 до 75 Градусов C. Поскольку тенденция инфраструктуры IIoT (Industrial Internet of Things) становится востребованной, ISW-800T специально разработан для упрощения развёртывания промышленной сети. Physical Port. 8-port 10/100BASE-TX RJ45 with auto MDI/MDI-X function
Технические характеристики Planet ISW-800T
Характеристики
| Бренд | Planet |
